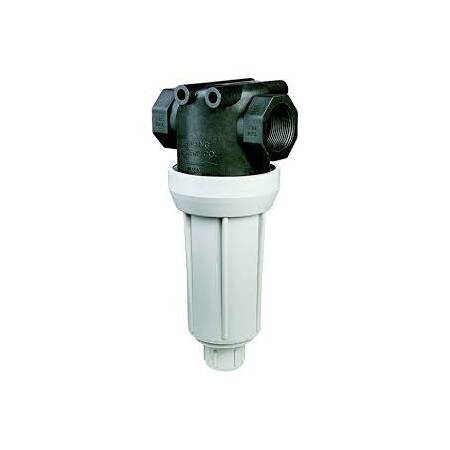

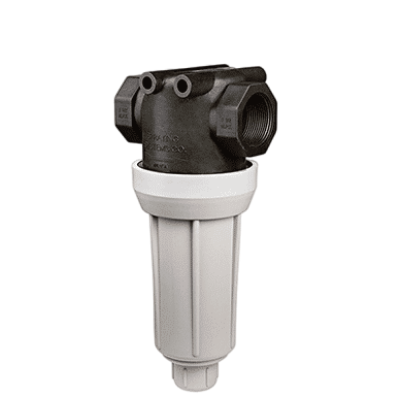

Teejet Filter Line Strainer 1-1/2" AAB126ML-6
The TeeJet self-cleaning strainer extends your spraying time with a self-cleaning feature that minimizes clogging. Mounted on the discharge side of the pump, the strainer uses excess pump flow to bypass clogging particles back to the spray tank. The tapered inner cylinder inside the entire length of the screen provides a gap between the screen face and the cylinder. This gap causes the inlet fluid to flow at a high velocity past the screen face providing for a continuous wash down of particles to the bypass line. In order for the wash down to occur, a minimum flow rate of 8 GPM (30 l/min) for 1-1/4 and 1-1/2 inch sizes is required through the bypass line.
-1-1/2" BSP Threads
-200 PSI (14 bar) maximum pressure rating.
-Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.

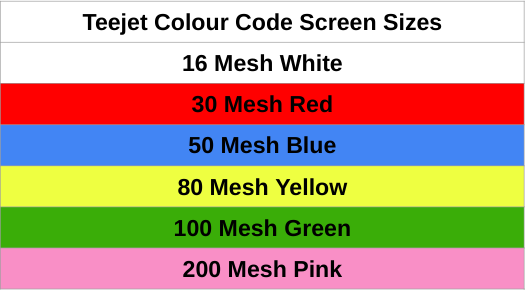

-Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
-Removable cap and gasket for flush-out or self-cleaning operations.
.png)
| SKU | AAB126ML-6 |
| Brand | Teejet |
The TeeJet self-cleaning strainer extends your spraying time with a self-cleaning feature that minimizes clogging. Mounted on the discharge side of the pump, the strainer uses excess pump flow to bypass clogging particles back to the spray tank. The tapered inner cylinder inside the entire length of the screen provides a gap between the screen face and the cylinder. This gap causes the inlet fluid to flow at a high velocity past the screen face providing for a continuous wash down of particles to the bypass line. In order for the wash down to occur, a minimum flow rate of 8 GPM (30 l/min) for 1-1/4 and 1-1/2 inch sizes is required through the bypass line.
-1-1/2" BSP Threads
-200 PSI (14 bar) maximum pressure rating.
-Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
-Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
-Removable cap and gasket for flush-out or self-cleaning operations.
| SKU | AAB126ML-6 |
| Brand | Teejet |
